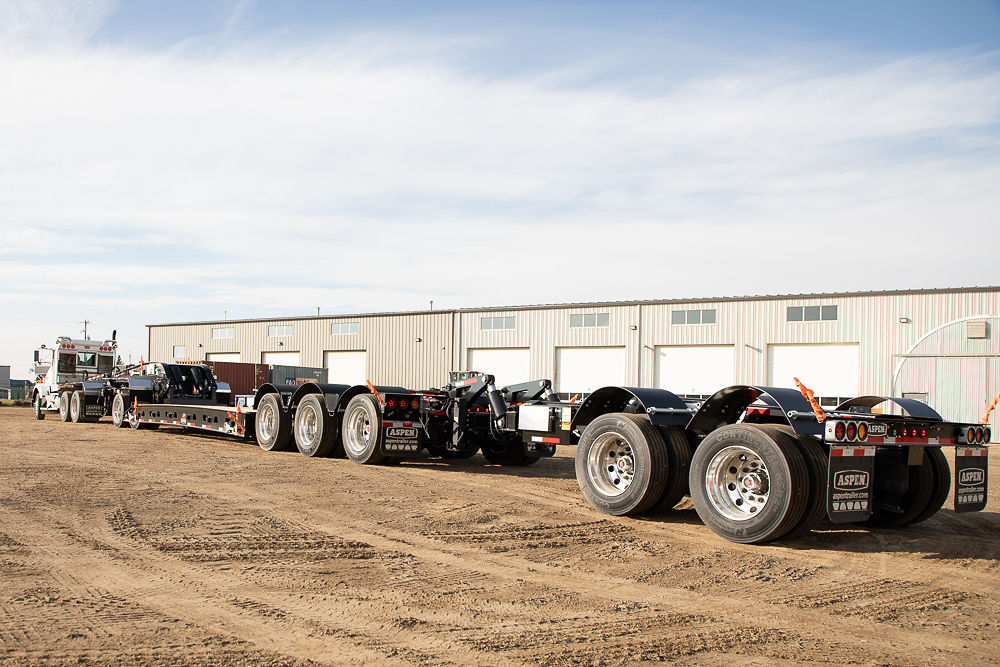

This Aspen E-Series TRANSPORTER is a hydraulic removable gooseneck trailer designed to operate as a 65 Ton multi-axle transporter. It has the swing clearance to suit a tandem or tri-drive tractor, and when equipped with an extension it will operate with a tandem axle jeep with 168″ swing. The rear frame is designed to accept a 20 Ton tandem axle hydraulic relief booster. This is Aspen’s lightweight and versatile transporter, known for scaling loads that many others can not. For more than 45 years, customers have relied on Aspen trailers to #HaulMore™ every single day.
GOOSENECK Narrow hydraulic removable gooseneck Two kingpin positions and removable kingpin Hydraulic operated gooseneck support arm Shimmable swing stops to adjust upper coupler height
MAIN DECK Double drop four beam design Fully fabricated high yield main beams Deck camber to suit maximum rated load Low profile front-loading ramps, c/w grouser bars Pin-jointed connection to rear frame
REAR FRAME Aspen squaretail design Depressed style cross members One pair of flag holders, c/w Aspen wide load flags One pair of D-sign holders installed on 29 1/2” centers
AIR/ELECTRICAL Regulated air override & emergency brake release valve mounted in protected control box Air and Electrical gladhand bracket DOT 12V system, 7-way connector with LED rubber grommet lighting to meet US and CDN FMVSS
Running Gear Axles: Steel hub, Cast drum c/w Rear axle air lift Wheels: Machined & Polished Aluminum Tires: 275/70 R 22.5 Highway Radials Suspension: 75,000 lbs Air Ride with Shock straps
PAINT Sandblasted, primed (two part polyurethane high solids) and painted Aspen standard colour (2 part polyurethane topcoat) with conspicuity tape to meet US and Canadian FMVSS Paint Code: Required Upon Authorization Running Gear Axles: Steel hub, Cast drum c/w Rear axle air lift Wheels: Machined & Polished Aluminum Tires: 275/70 R 22.5 Highway Radials Suspension: 75,000 lbs Air Ride with Shock straps
INCLUDED OPTIONAL EQUIPMENT 88″/112″ swing, 168″ swing gooseneck extension, Hydraulic flip Dual source hydraulics: Wet kit and Power pack Powerpack door and rear enclosure panels Mud flaps on web mounted hangers (No aluminum fenders) Pair of gooseneck mounted swingout lights Pair of gooseneck mounted rear facing work lights 3″ Rough fir outer decking 2″ Rough fir inner/outrigger decking Swingout outriggers on 24″ centers c/w Pull-out outriggers in the front ramp Two pair of D-Rings on front ramp D-Rings installed on 48″ centers Two pair of deck mounted pull-up chains 1 x Bolt-on chain tray Outer bolsters c/w chain pockets Auxiliary battery for strobe lights Pair of D-Rings on rear frame
