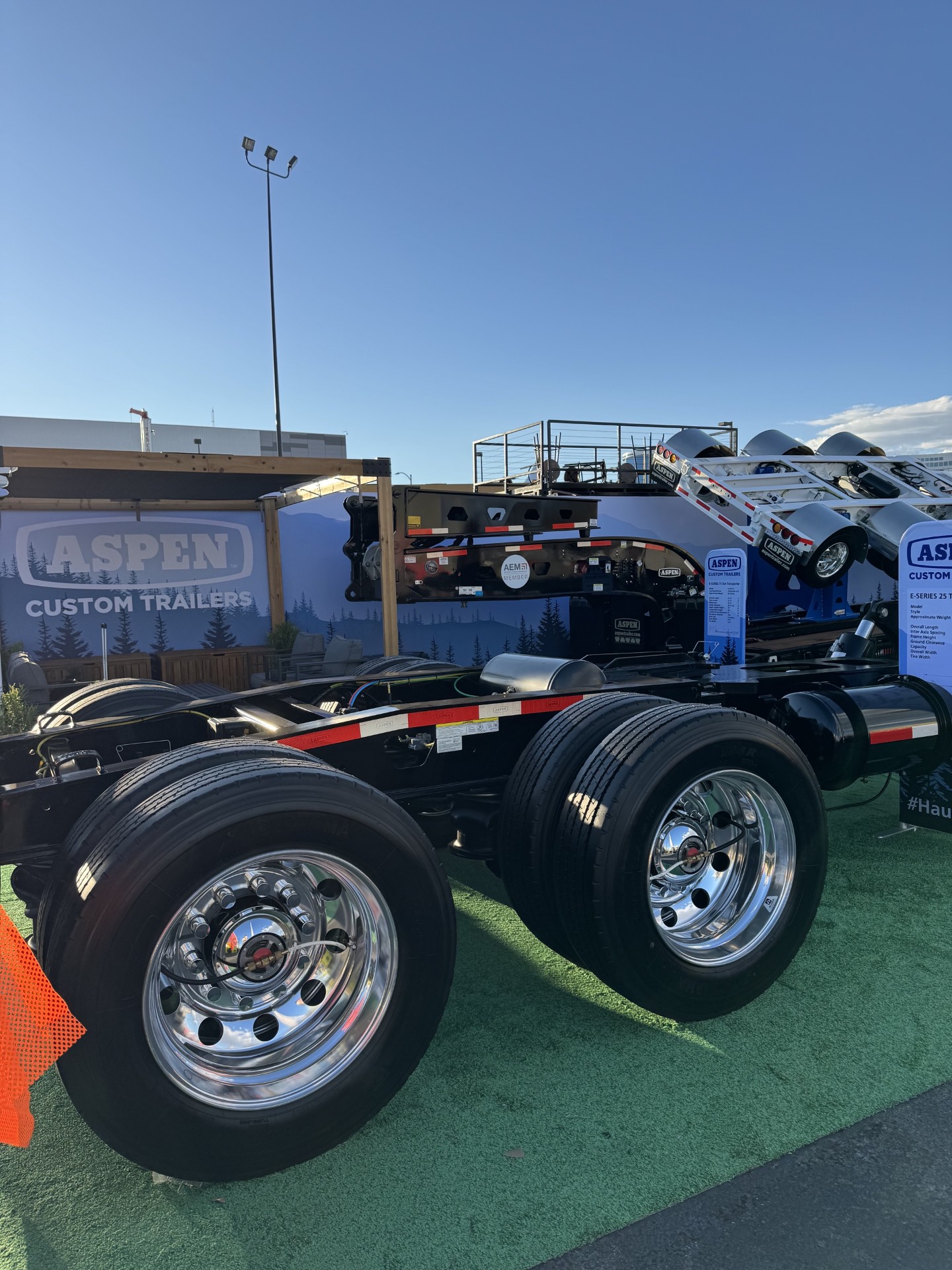

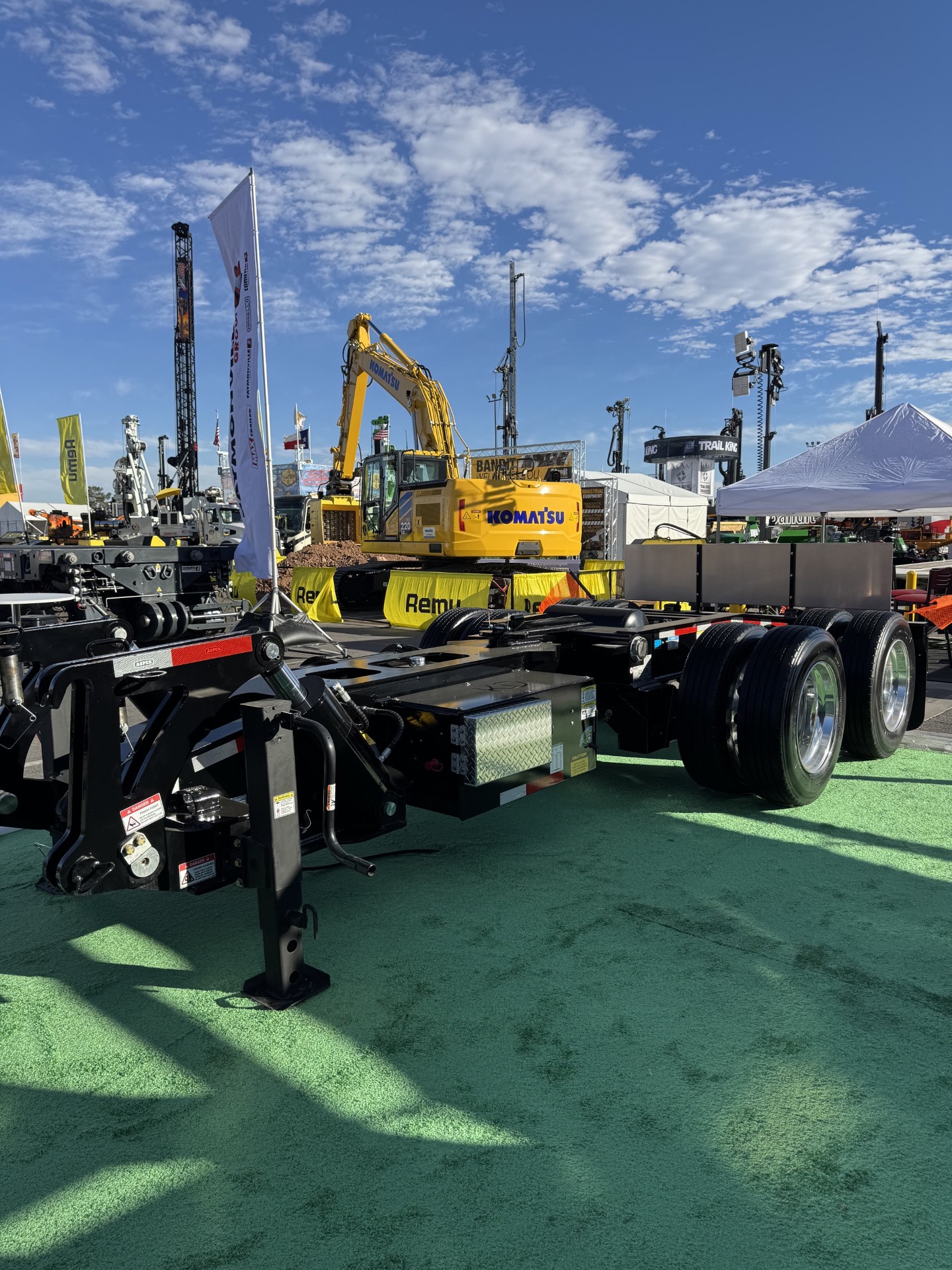

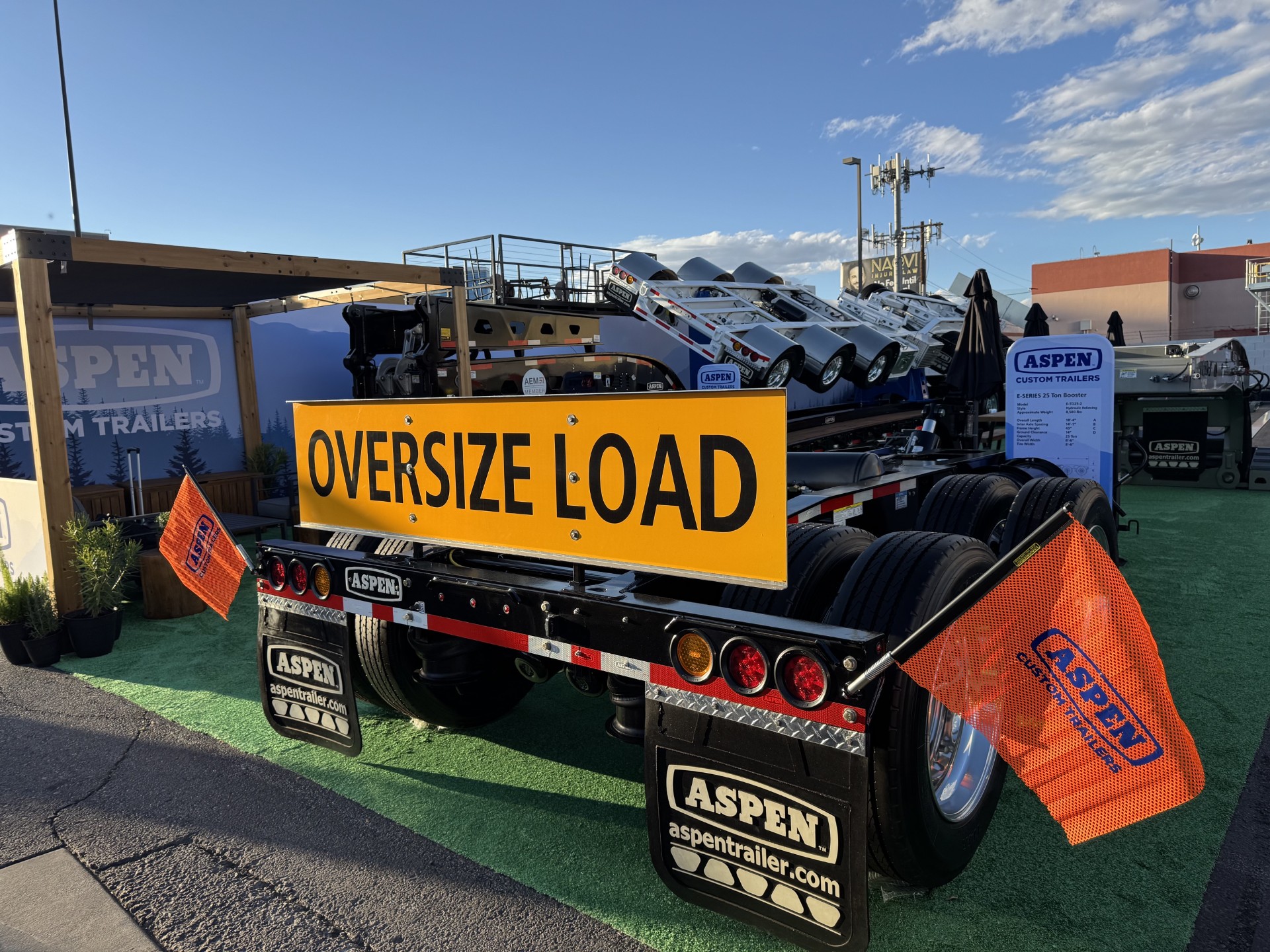

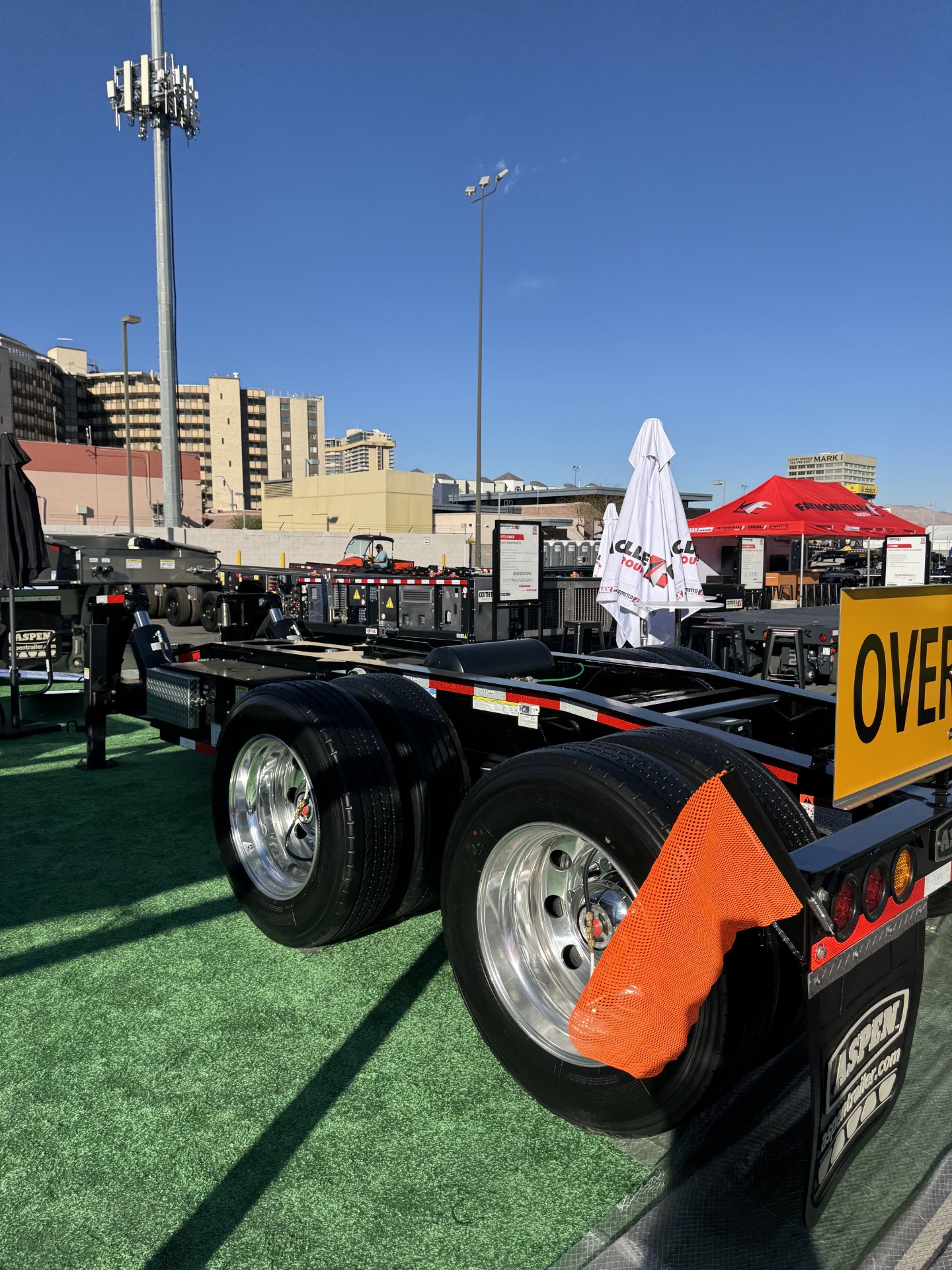

25 Ton Tandem Axle Booster
| Stock: FG-00849 | Manufacturer: Aspen |
| Series: E-Series | Capacity: 25 Ton |
| Axles: 2 | Location: Waco, TX |
| Availability: Available Immediately | Length: 18'-4" |
| Width: 8'-6" | Approximate Weight: 8,500 lbs |
Request More Info
Detailed Specs
Description
The Aspen E-SERIES 25 Ton Tandem Axle Booster is engineered to maximize payload. Designed to integrate seamlessly with Aspen’s E-SERIES lowbeds, this hydraulic relieving booster allows full tridem weights on the rear axle group for greater hauling efficiency. Aspen’s hydraulic relieving system prevents axle overload, reducing stress and potential damage to both the booster and trailer and utilizes the patented Autoshim® leveling system. Built with the reliability and durability customers expect from Aspen Custom Trailers, this booster is a dependable way to #HaulMore™.
Main Frame
Pin-on style connection for square tail trailer
Two pair of chain pockets for lifting booster
Independent landing gear for connecting to trailer
Ability to lift booster tires off ground for backing onto site
One pair of flag holder, c/w Aspen wide load flags
One pair of D-sign holders installed on 29 1/2” centers
Lightweight light bar
One pair of Aspen mud flaps
Axle pin-up lugs
Running Gear
Axles: Steel hub, Cast drum
Wheels: Aluminum – Dura-Bright Outer
Tires: 275/70 R 22.5 Highway Radials
Suspension: 50,000 lbs Air Ride with Shock straps
Air System & Electrical
Regulated air override & emergency brake release valves DOT 12V system, 7-way connector with LED rubber grommet lighting to meet US and CDN FMVSS Strobe lights installed in lightweight light bar bumper
Paint
Sandblasted, Primed (two-part polyurethane high solids) and Painted Aspen standard color (two-part polyurethane Topcoat) with Conspicuity Tape meets US FMVSS & Canadian CMVSS
Paint Code: Black
Included Optional Equipment
- ECU Auto-Shim™ Leveling system
- Aluminum oversize sign
- Tire inflation system
- Air weight scale
