55 Ton Triaxle MUSTANG Lowbed

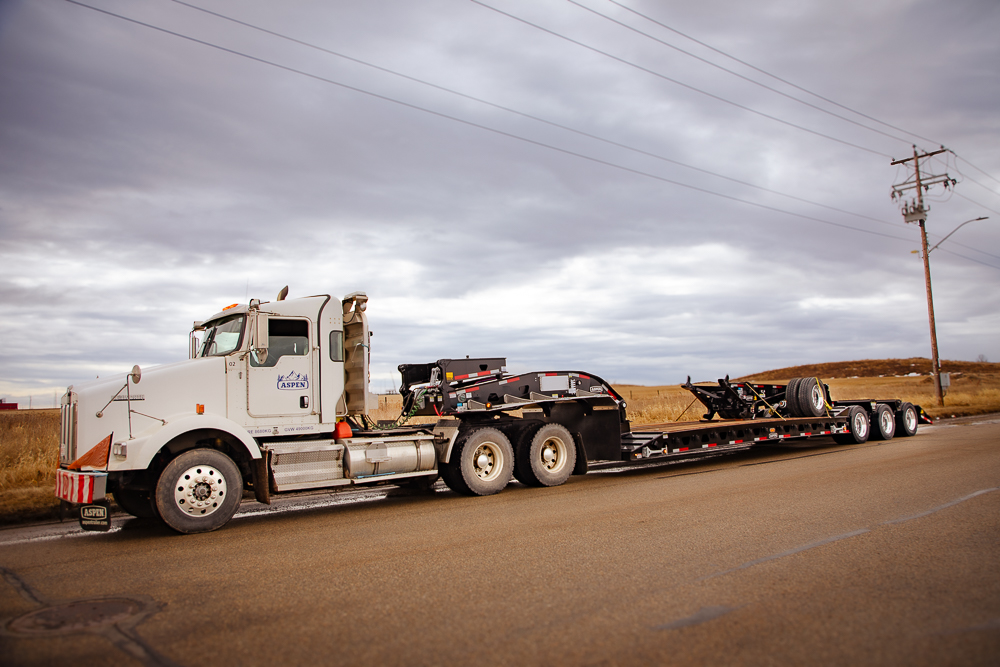

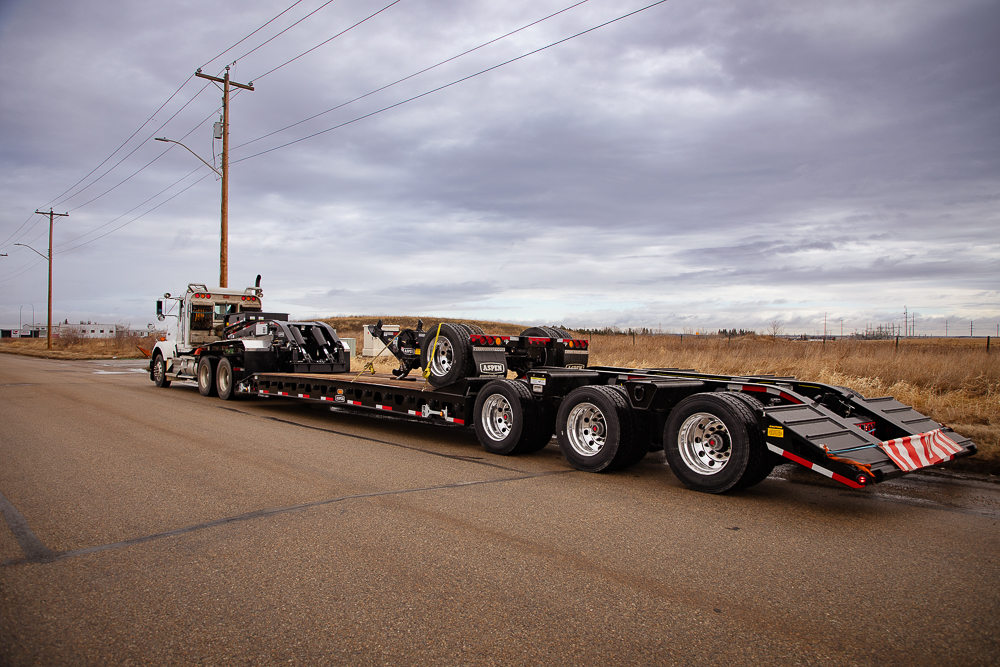

The Aspen T-Series MUSTANG is a hydraulic removable gooseneck, beavertail trailer designed to operate as a 55 ton multi-axle transporter. The full capability of this rugged on/off highway transporter can be seen when combined with a tandem or tri-drive tractor, a single or tandem axle jeep & a single axle fish mouth style tag dolly.

Load Specification
55 Tons concentrated load over 15’-0” of trailer deck

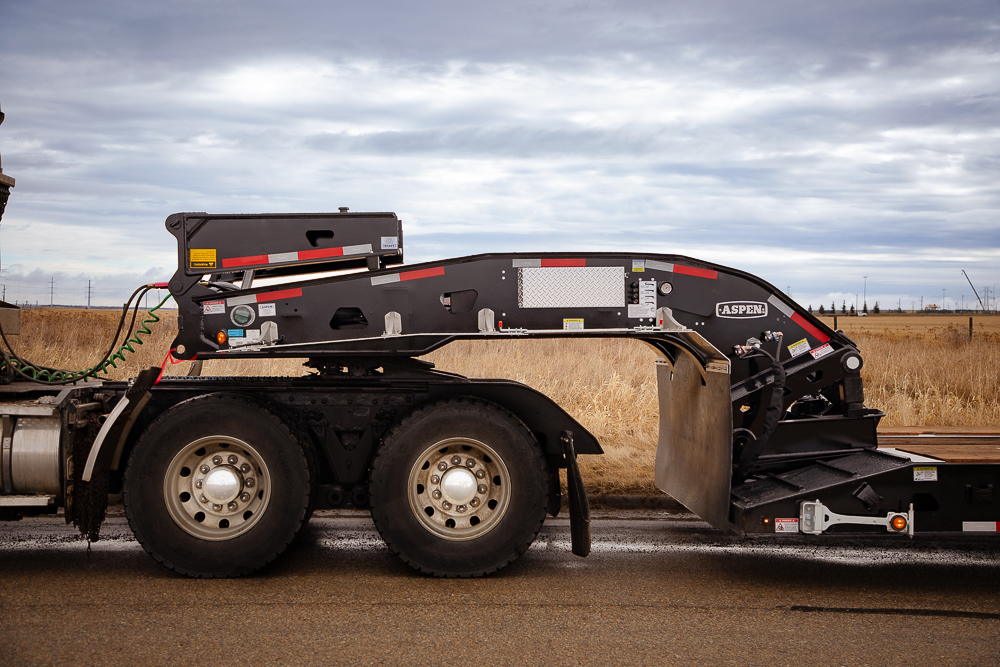

Gooseneck
Narrow hydraulically removable, Aspen “Arched” style Signature gooseneck
Two kingpin positions with removable kingpin
Swing stops FG-to adjust upper coupler height
Hydraulic system operates bolt in swing down support arms in middle of gooseneck
Dual source hydraulic power c/w tractor power take-off and 13hp Honda power unit
Hydraulic power pack installed in aluminum enclosure, comes with aluminum door cover
Bolt on Aluminum fenders with powerpack access and Full width heavy duty “bushflap”
Gooseneck extension to suit 168” swing hydraulic flip – suitable for tandem jeep

Main Frame
Decking: 3” rough fir throughout
Double drop, four beam design
Fully fabricated high yield main beams
Camber in the main deck is set to suit maximum rated load
Low profile front-loading ramps, c/w grouser bars
Drop-in Chain basket installed at the rear of deck

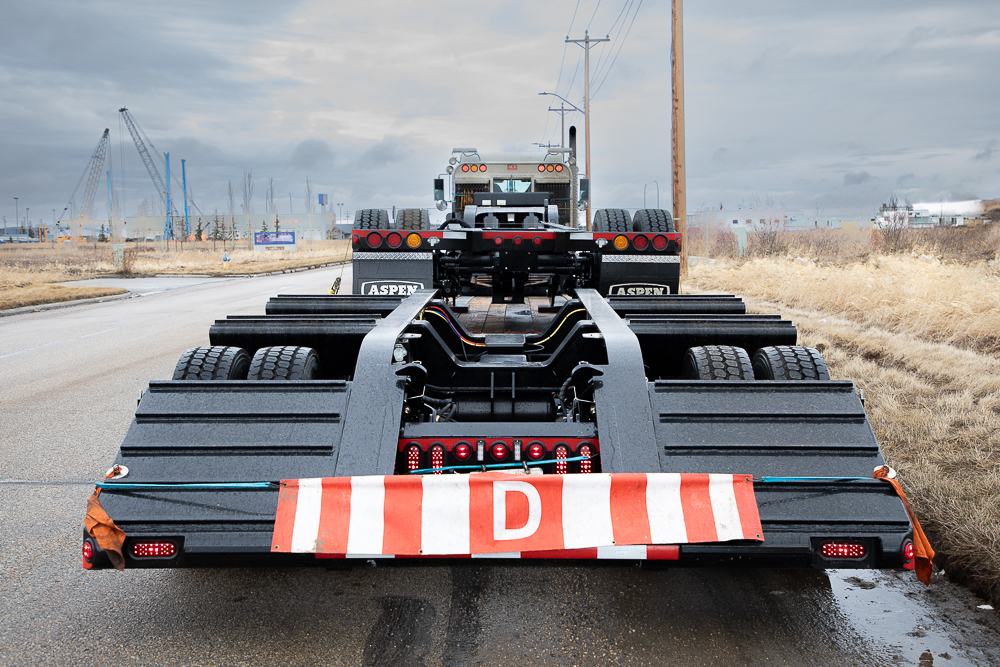

Rear Frame
Aspen style 18” bolsters mounted on top of bottom flange between each axle, including D-rings on ends
Aspen standard load bearing square tail
10” Depressed style bolster cross members offering deeper boom knuckling trough
One pair of flag holders, c/w Aspen wide load flags
One pair of D-sign holders installed on 29 ½” centers
Single axle tag dolly kit to suit Fish mouth style booster

Load Secure and Storage
In-deck recessed chain tiedowns (two pair)
Chain pockets opposite each crossmember at 24-inch centers
Inner D-rings above first axle

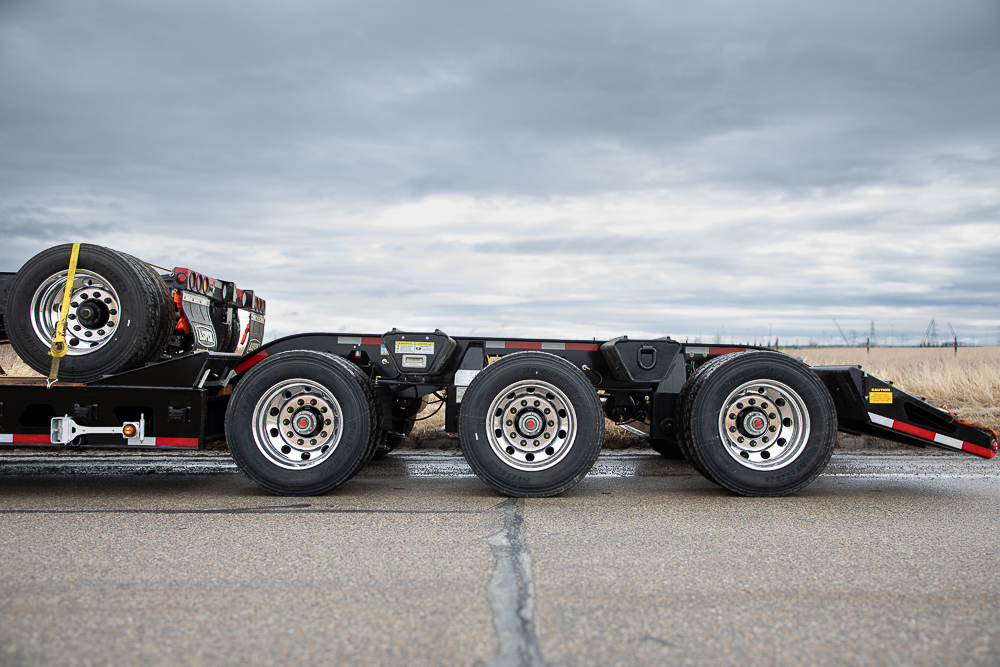

Running Gear
Suspension: 90,000 lb. air ride,
Axle Spacing: 60”
Axles: (3) 25,000 lb., capacity per axle (Nom)
Tires: (12) 275/70R22.5 premium on/off road radials
Wheels: (12) 8.25 x 22.5 Aluminum
Hubs: 10-stud hub piloted, to suit steel or aluminum wheels
Brakes: 16.5×7 drum
Brake Chambers: spring brakes on each axle
Travel restrictors (Jerk chains) on all axles

Air/Electrical
Air brake system to meet US FMVSS & Canadian CMVSS
Air beyond for connection to Aspen Single Axle Booster
DOT 12V system, 7-way Connector with LED rubber grommet Lighting to meet US FMVSS & Canadian CMVSS

Paint
Sandblasted, Primed (two part polyurethane high solids) and Painted Aspen standard color (two part polyurethane Topcoat) with Conspicuity Tape to meet US FMVSS & Canadian CMVSS
